QLOZONE Combi drum filter fully automatic koi pond filtration equipment QL-YCM-01
QLOZONE Combi drum filter fully automatic koi pond filtration equipment QL-YCM-01
Regular price
Rs. 375,000.00
Regular price
Rs. 390,000.00
Sale price
Rs. 375,000.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

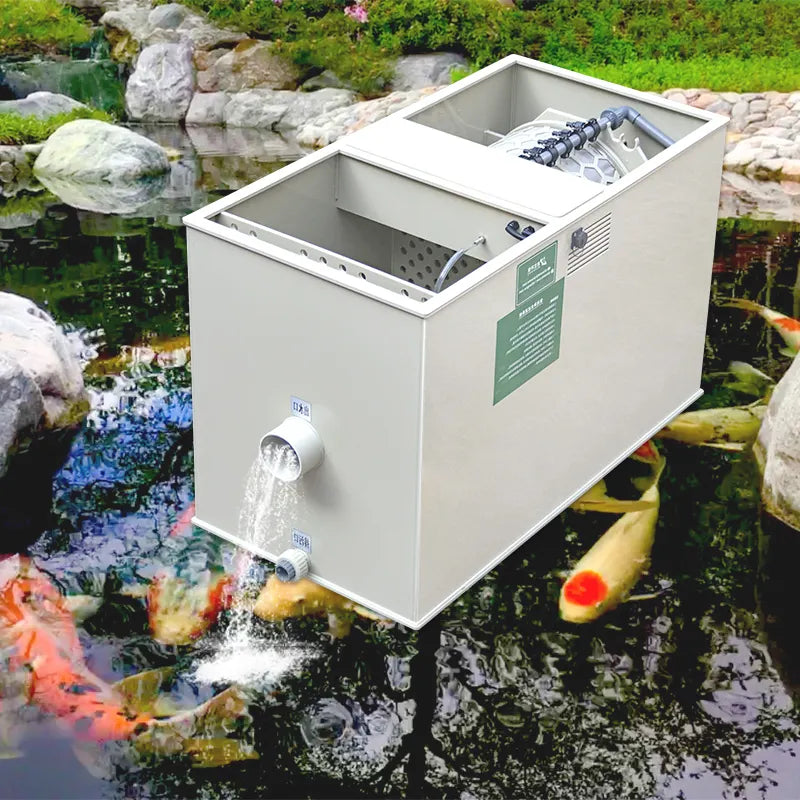

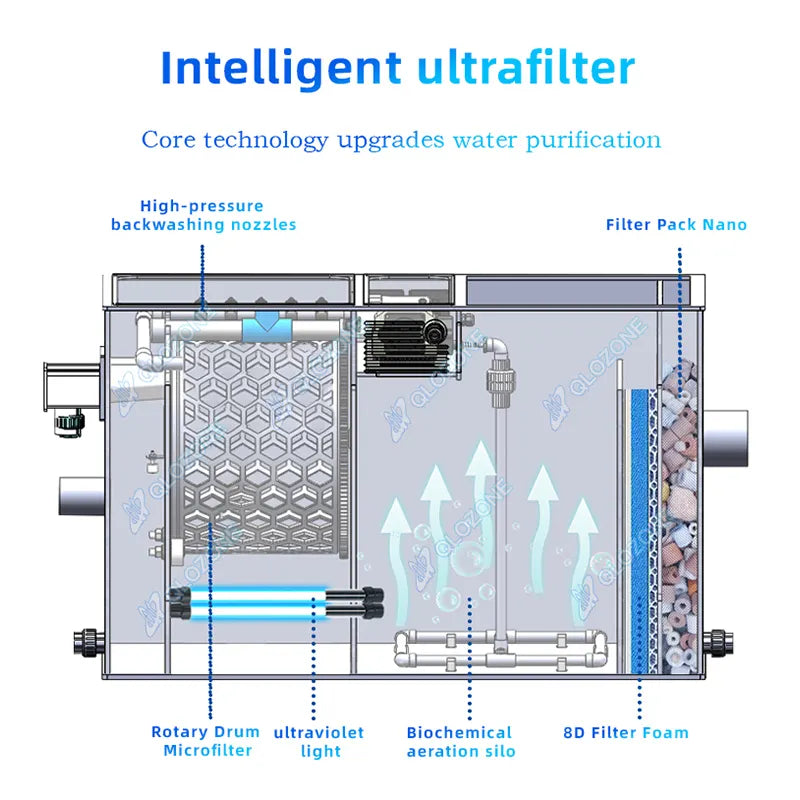

QLOZONE YCM series combi drum filter, designed all in one with drum filter chamber, bio filter chamber with K5 media, UV chamber. Suitable for koi fish pond 0~100 cubic water volume.
Features:
1.Fully automatic design, drum filter with SS 316L material, 70 micron;
2.Auto back wash pump built in, control by water level sensor and timer.
3.Bio filter chamber with K5 type PE media inside, aeration with air pump.
4.UV Disinfection, inhibiting algal growth.
5.Food grade PP case, with SCS certificate.
6.Moveable electric control cabinet.
7.Water inlet and outlet size can customized.
8.OEM&ODM support.
|
Model:
|
Water flow
|
Backwash pump
|
Media Capacity
|
Suitable Water Capacity
|
Size(mm)
|
Inlet /Outlet
|
| YCM-C5 |
5m3/h=1320 gallon/h
|
80W/24V
|
K5 medial 30L |
0m3-20m3
|
1000x350x500
|
50mm=2inch |
|
YCM-01
|
15 m3/h =
3962 gallon/h |
370W/48V
|
K5 media
115 L |
10m3-50m3
|
1200*620*700
|
75mm=2.95 inch/
110mm=4.33 inch |
|
YCM-02
|
18 m3/h =
4755 gallon/h |
370W/48V
|
K5 media
130 L |
40m3-60m3
|
1300*650*720
|
75mm=2.95 inch/
110mm=4.33 inch |
|
YCM-03
|
23m3/h =
6076 gallon/h |
370W/48V
|
K5 media
150 L |
50m3-70m3
|
1400*680*740
|
110mm=4.33 inch/
110mm*2=4.33 inch*2 |
|
YCM-04
|
27m3/h =
7132 gallon/h |
370W/48V
|
K5 media
170 L |
60m3-80m3
|
1500*710*760
|
110mm=4.33 inch/
110mm*2=4.33 inch*2 |
|
YCM-05
|
32m3/h =
8453 gallon/h |
370W/48V
|
K5 media
190 L |
70m3-90m3
|
1600*730*780
|
110mm*2=4.33 inch*2/
110mm*3=4.33 inch*3 |
|
YCM-06
|
37m3/h =
9774 gallon/h |
370W/48V
|
K5 media
255 L |
80m3-100m3
|
1800*800*820
|
110mm*2=4.33 inch*2/
110mm*3=4.33 inch*3 |
- Video for YCM combi drum filter outlook
